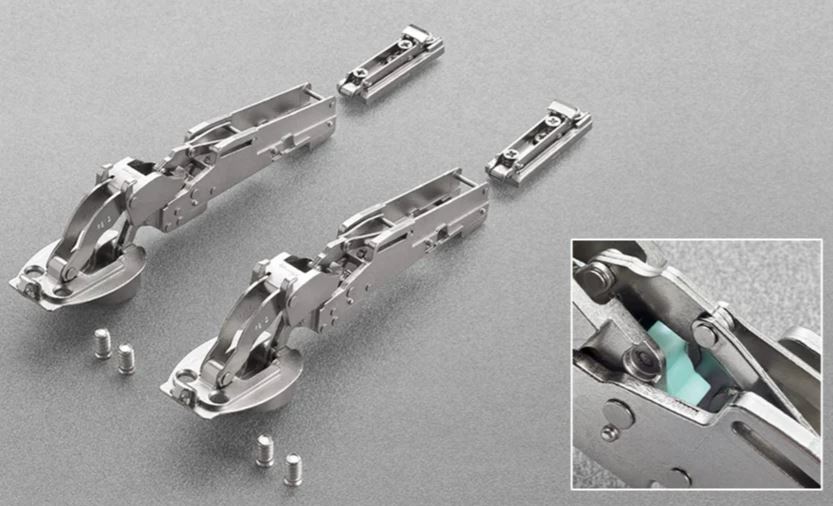

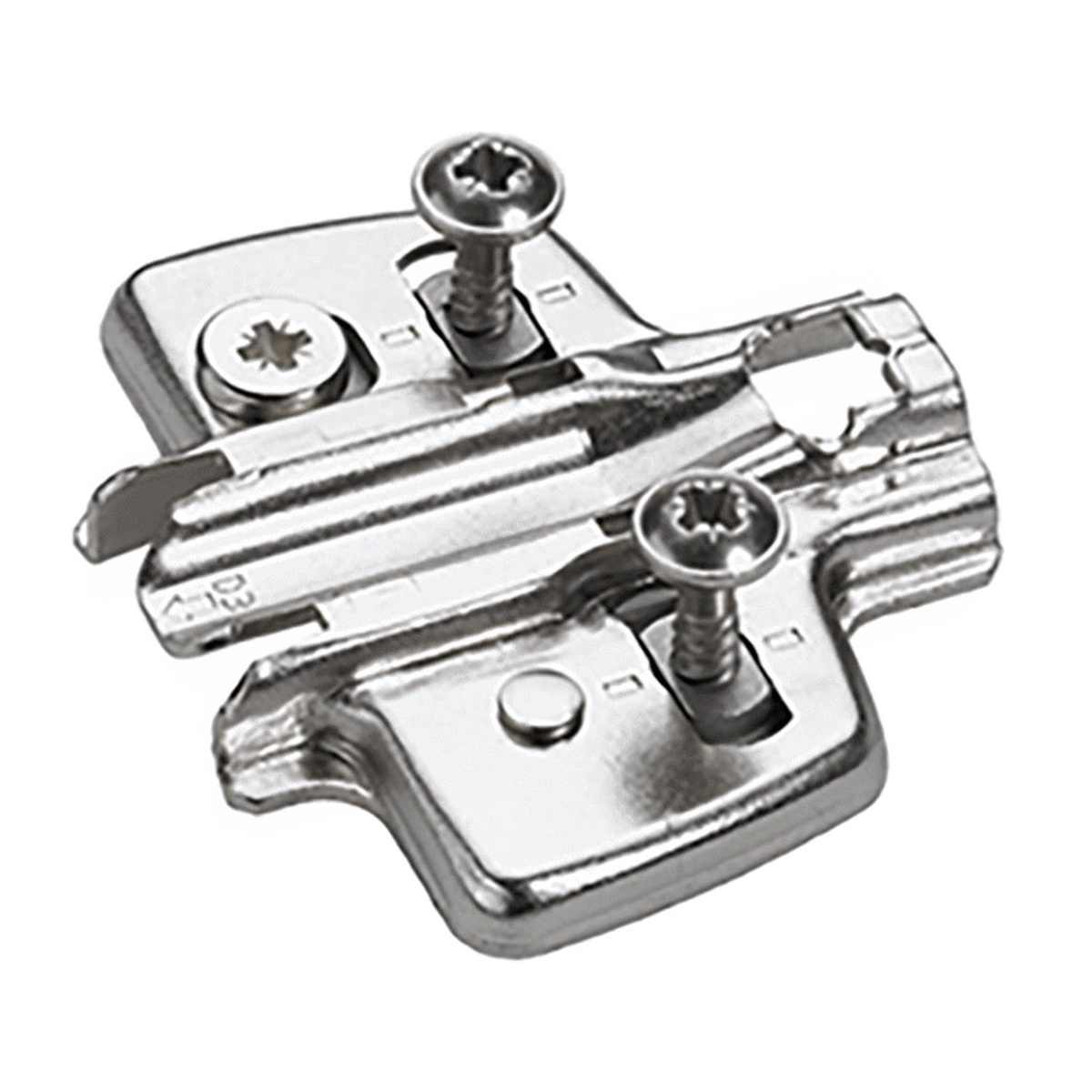

The all-new PACTA SPRUNG hinges from Salice, with integrated Soft-Open mechanism are small and compact and are designed for 'fall' or 'drop' flaps without the need for additional stays or cables. PACTA confers a decelerated 'SMOVE' opening action and the fall of the door is gradual and controlled. It has a positive sprung closing action. In the fully-open position the door and base panel are fully aligned, creating a uniform and flat surface. Its applications are numerous; in living room and kitchen cabinets, to create desks in children's furniture or for writing surfaces and table extensions in hotel furniture. Fully adjustable in 3 directions. Clip-On mount plates included. For door heights 280mm to 400mm. For min. 18 mm thick wooden doors. Available in 3 strengths to suit small, medium or large doors, 1.5kg through to 9.5kg. * For cabinets over 900mm wide an additional centre hinge is strongly recommended - please see here. Requires standard 35mm dia x 13mm deep drillings for the hinge cup. 90° opening. Edge drilling distance on the door (K) is fixed at 4.5mm.
